Our Products

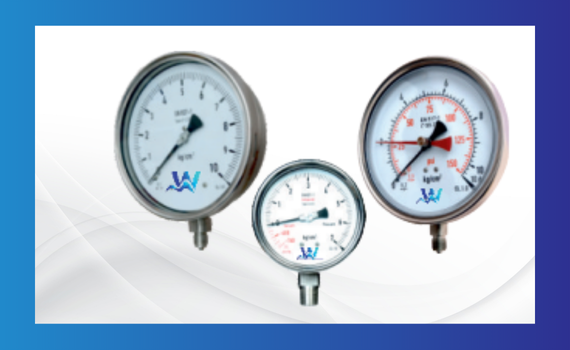

Industrial Heavy Duty Weather Proof Pressure Gauge

Dial Size: 50 to 250mm
Accuracy: ±1.6 of Full Span
Case & Bezel: SS 304 Bayonet Type
Wetted Parts: SS 304 / SS 316
Connection : 50/63/80mm: 1/8 & 1¼”BSP / NPT (M) 100 to 250mm : 1/4/3/8/ 1/2″BSP / NPT Other Connection on Request
Range : Vacuum / 0.6 to 2500 Kg/cm²

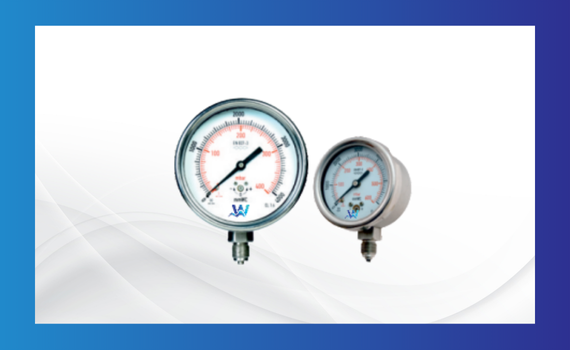

Industrial Heavy Duty Liquid Filled Pressure Gauge

Dial Size: 50 to 250mm
Accuracy: ±1.6 of Full Span
Case & Bezel: SS 304 Crimp Type For 150mm and Above Size Snap Action Bayonet Type
Wetted Parts: SS304/SS 316
Connection : 50/63/80mm: 1/8 & 1¼”BSP / NPT (M) 100 to 250mm : 4/3/8/½"BSP/NPT Other Connection on Request
Range : Vacuum /Pressure 0.6 to 2500 Kg/cm

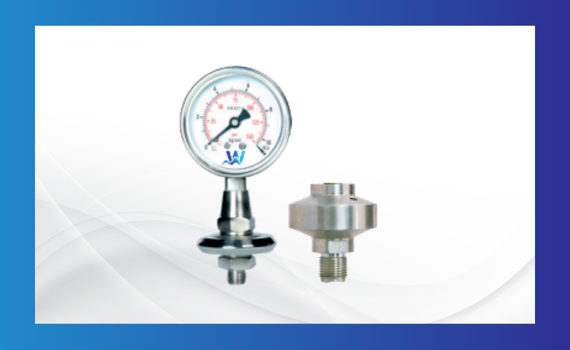

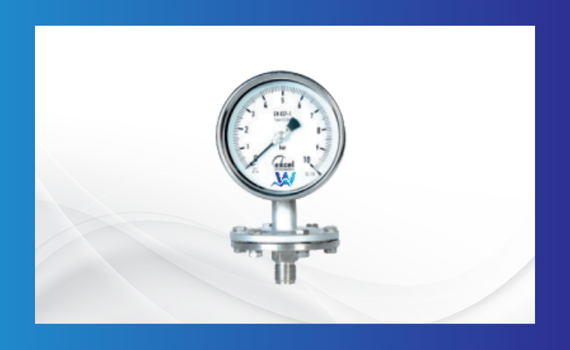

Diaphragm Sealed Pressure Gauge (Thread Connection)

Dial Size: 63 to 150mm
Accuracy: ±1.6% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Wetted Parts:
Top Chamber: S S 304
Diaphragm & Bottom Chamber: S S 316 PTFE Lined/Coated Wetted Parts Optional
Connection: 4/3/8/½" BSP/NPT (M) Other Connection on Request
Range: Vacuum/Pressure 0.6 to 400Kg / c * m ^ 2

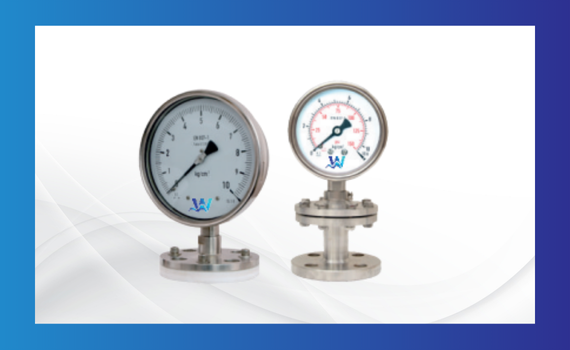

Diaphragm Sealed Pressure Gauge (Flange End)

Dial Size: 100 & 150mm
Accuracy: ±1.6% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Wetted Parts:
Top Chamber: S S 304
Diaphragm & Flange : S S 316
PTFE Lined / Coated Wetted Parts Optional Connection: Y_{2} ^ * 4" NB ANSI B16.5/DIN/BS Flanges Other Connection on Request
Range: Vacuum / Pressure 0.6 to 70Kg / c * m ^ 2

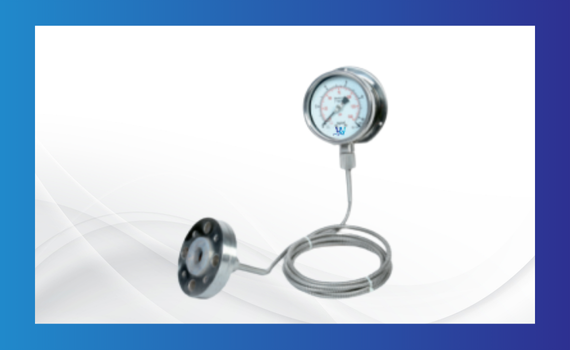

Remote Diaphragm Sealed Pressure Gauge Flanged end

Dial Size: 100 & 150mm
Accuracy: plus/minus 1.6 of Full Span
Case & Bezel: SS 304 Snap Action Bayonet
Wetted Parts: Top Chamber: S S 304
Diaphragm & Flange : S S 316 PTFE Lined / Coated Wetted Parts Optional
Connection: 1/2 ^ n 4" NB ANSI B16.5/DIN/BS Flanges Other Connection on Request
Capillary: SS 316 With SS 304

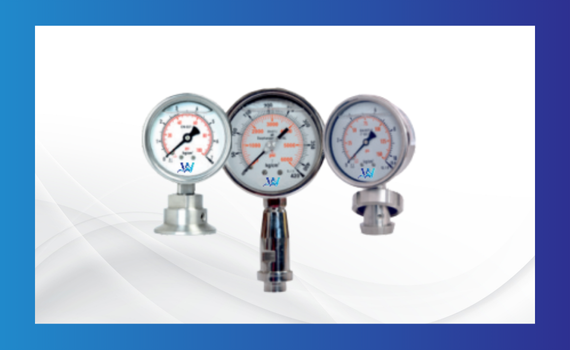

Diaphragm Sealed Pressure Gauge Sanitary Process Connection

Dial Size: 63 & 150mm
Accuracy: plus/minus 1.6 % of Full Span
Case & Bezel:SS 304 Snap Action Bayonet Type
Wetted Parts: Wetted Parts & Diaphragm: S S 316
Connection: 1"/1-1/2"/2" TC End SMS Union Nut & Male Thread Homogenizer
Range:

Compact Welded Diaphragm Sealed Pressure Gauge

Dial Size: 63 & 100mm
Accuracy: plus/minus 1.6 % of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Wetted Parts:
Wetted Parts & Diaphragm: S S 316
Connection: 4/3/8/BSP/NPT (M) Other Connection on Request
Range: Vacuum / Pressure 0.6 to 70Kg / c * m ^ 2

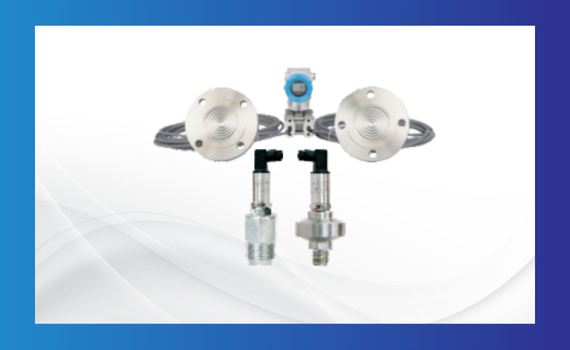

Transmitter With Diaphragm Sealed Unit

Filling & Calibration for All Type of Pressure Transmitter
Wetted Parts:
Wetted Parts & Diaphragm: S S 316
Other Wetted Parts like: Monel / Hastelloy 'C', Tantalum PTFE Coating/Lined etc
Connection: 4/3/8/1/4" BSP/NPT (M) Flange End Connection

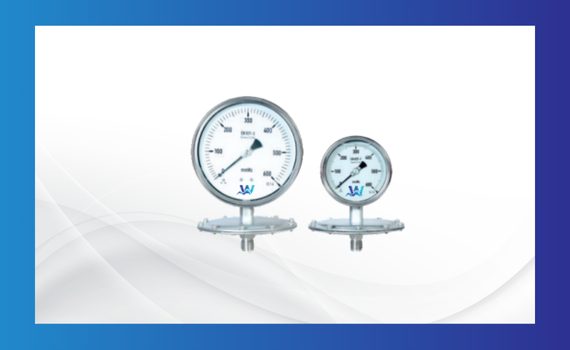

Low Pressure Diaphragm Type Pressure Gauge

Dial Size: 100 to 150mm
Accuracy: (plus/minus 1.68 plus/minus 2.5)% Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Top Chamber: MS Powder Coated / SS304
Bottom Chamber & Diaphragm: SS 316
Connection: 4/3/8/2" BSP/NPT (M)
Flange End Connection
Range: (+or-) 250 to 6000 mmWC
Optional: External Zero Adjustment Electrical Contact/Liquid Filled Case

Schaffer Diaphragm Type Pressure Gauge

Dial Size: 100 to 150mm
Accuracy: (plus/minus 1.68 plus/minus 2.5)% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Top Chamber: MS Powder Coated / SS304
Bottom Chamber & Diaphragm:</b SS 316
Connection: 4/3/8/BSP/NPT (M) Flange End Connection
Range: (+or) 1 to 14Kg / c * m ^ 3 External Zero Adjustment
Optional: Electrical Contact/Liquid Filled Case

Low Pressure Capsule Type Pressure Gauge

Dial Size: 63, 100 & 150mm.
Accuracy: (plus/minus 1.68 plus/minus 2.5)% of Full Span Case & BezelSnap Action Bayonet Type
Sensing Element: PB/SS 316 Capsule
Connection: 4/3/8/½" BSP/NPT (M)
Range: (+or-) 100 to 10000 mmWc 10 mbar to 1000 mbar Scale Marking mmWC/mbar Dual Scale Zero Adjustment On Dial

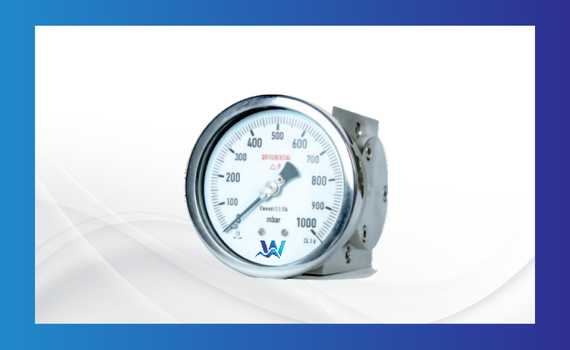

Differential Pressure Gauge Very Low Pressure Capsule Type

Dial Size: 100 & 150mm
Accuracy: (plus/minus 1.6 * 8 plus/minus 2.5)% Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: PB/SS 316 Capsule
Connection: 4/3/8/% BSP/NPT (M)
Range (+or-) 100 to 2500 mmWc 10 mbar to 250 mbar
Differential Pressure: Max Full Scale Value
Max Pressure Limit: Max. 400 mbar for 100 mm Dial Max. 250 mbar for 150 mm Dial Zero Adjustment on Dial

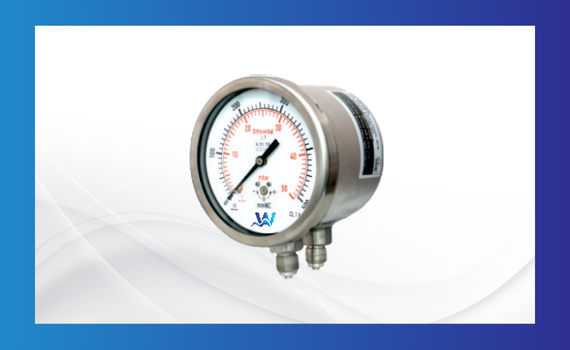

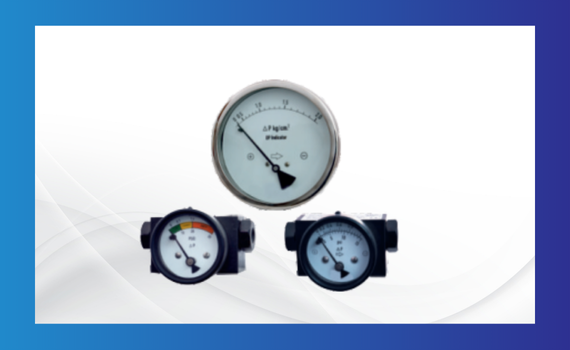

Differential Pressure Gauge Single Diaphragm Type

Dial Size: 100 & 150mm
Accuracy: ±2.5% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: SS 316 Diaphragm
Connection: " NPT (F)
Range: 0-250 mmwc upto 6000 mmWC 0-1 Kg/cm² upto 10 Kg/cm² Differential Pressure Max Full Scale Value
Static Pressure: 10 Times of Full Scale
Optional: External Zero Adjustment/Electrical Contact / Liquid Filled Case

Differential Pressure Gauge Magnetic Piston Type

Dial Size: 63/100 & 150mm
Accuracy: ±2.5% of F.S. (Ascending)
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: Magnetic Coupled Piston
Wetted Parts: Aluminum/S S 316
Connection: " BSP/NPT (F)
Range: 0 to 0.5 Kg/cm upto 10 Kg/cm² Differential Pressure Max Full Scale
Static Pressure: 200/400 Kg/cm²
Optional: Magnetic Reed Switch Liquid Filled Case

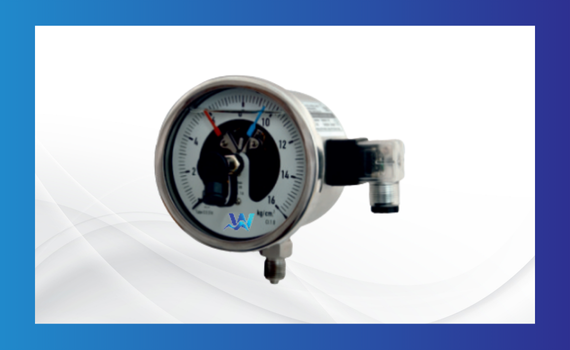

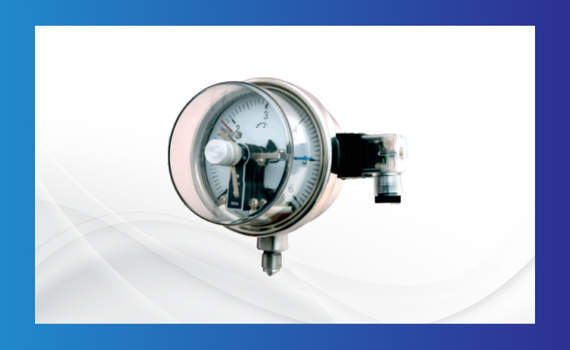

Electric Contact Pressure Gauge (EC Series)

Dial Size: 100 & 150mm
Accuracy: ±1.6% of Full Span
Switching Accuracy: ±2% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: SS 316 Bourdon Tube
Range: Vacuum / Pressure 0.6 to 1000 Kg/cm
Contact: Magnetic Snap Action Imported
Contact Rating: 230 V AC, 1 Amp./48 V DC, 0.5 Amp

Electric Contact Pressure Gauge (BEC & LFEC Series)

BEC: Dry Case Contact Gauge
LFEC: Liquid Filled Case Contact Gauge
Dial Size: 100 & 150mm
Accuracy: ±1.6% of Full Span
Switching Accuracy: ±2% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: SS 316 Bourdon Tube
Range: Vacuum / Pressure 0.6 to 1000 Kg/cm²
Contact: Magnetic Snap Action Imported
Contact Rating: 230 V AC, 1 Amp./48 V DC, 0.5 Amp

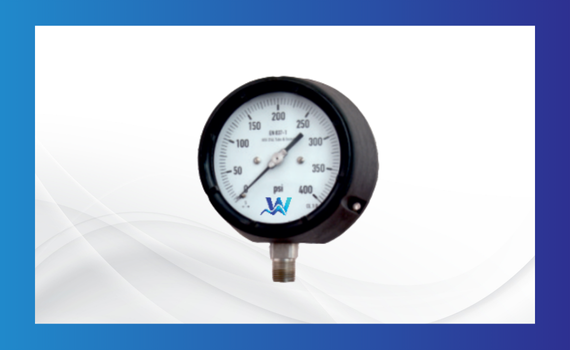

Safety Pressure Gauge PP Case (Series PPS)

Dial Size: (4 1/2 deg) / 115 * mm
Accuracy: ±0.5% / ±1% of Full Span
Case: PP With Reinforced Solid Front
Bezel: PP Inner Threaded
Sensing Element: SS 316/SS 316L
Mounting: Lower Bottom / Wall
Connection: "/3/8"/% NPT/BSP (M)
Range: Vacuum / Pressure 0.6 to 700Kg / c * m ^ 2

Industrial Pressure Gauge With External Zero Facility EZ Series

Dial Size: 150mm
Accuracy: plus/minus 1 % of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Wetted Parts: SS 304/SS 316
Connection: 3/8 & 1/2 ^ * BSP/NPT (M) Other Connection on Request
Range : Vacuum / 0.6 to 2500Kg / c * m ^ 2
Optional: Liquid

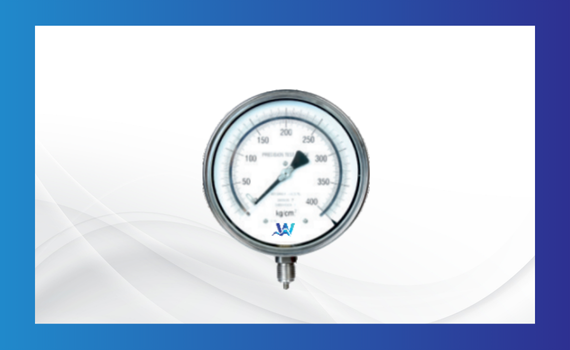

Precision Test Pressure Gauge

Dial Size: 150/200/250mm
Accuracy: (((plus/minus 0.5)%) / (plus/minus 0.25))% of Full Span
Case & Bezel: SS 304 Snap Action Bayonet Type
Sensing Element: Beryllium Copper Tube
Movement: Jeweled Bearing High Precision
Range Vacuum / Pressure 0.6 to 700Kg / c * m ^ 2

ECO Series Bourdon Type Liquid Filled Pressure Gauge

Dial Size: 50 to 150mm
Accuracy: plus/minus 1.6 of Full Span
Case & Bezel: SS 304 Crimp Type Snap Action Bayonet Type for 150mm
Wetted Parts: Brass/SS 304/SS 316
Connection: 1/8 ^ n BSP (M) For 100 & 150mm 3 /8^ prime prime BSP (M)
Range: Vacuum/1 to 420Kg / c * m ^ 2

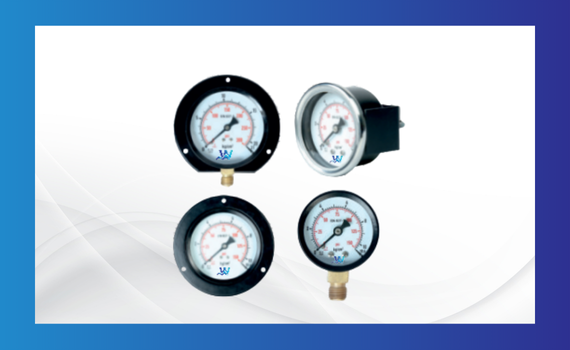

Commercial Pressure Gauge

Dial Size: 40 to 250mm
Accuracy: plus/minus 2 of Full Span
Case & Bezel: Black Pressed Steel
Wetted Parts: Brass/SS
Connection: 40mm - 1 /8^ prime prime BSP/NPT (M) 50 to 80mm- 1 / (8 deg) & 1 /4^ * BSP/NPT (M) 80 to 150mm- 3 /8^ prime prime BSP/NPT (M) 200 to 250mm- 1 /2^ prime prime BSP/NPT (M)
Range: Vacuum/1 to 700 Kg/cm

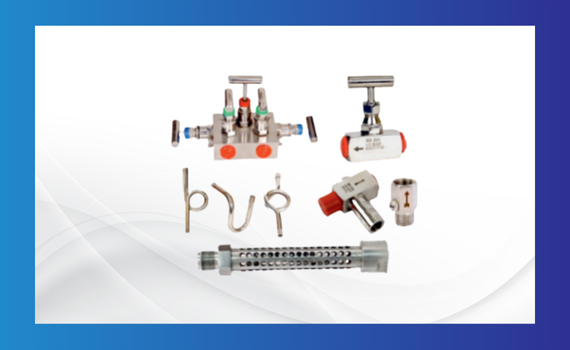

Accessories for Pressure Gauges

Snubber/Pulsation Dampener
Syphon Tube
Gauge Saver/Gauge Protector
Gauge Cock / Isolation Valve
Needle Valve / Flow Control Valve
Manifold Valve
MOC: SS 304/316

Thermometer Bi-Metal Type

Dial Size: 63/100 to 150mm
Accuracy: plus/minus 1.6 of Full Span As per EN 13190
Case & Bezel: SS 304/316 Bayonet Type
Element: Wounded Coil of Bi-Metal
Wetted Parts: SS304/SS316
Connection: 3/8 / 1 2 ^ prime prime BSP/NPT (M)
Mounting: Bottom / Back Direct
Range: (-)50 to 50 up to 600 Deg C

Thermometer Bi-Metal Type Every Angel

Dial Size: 100 & 150mm
Accuracy: plus/minus 1.6 of Full Span As per EN 13190
Case & Bezel: SS 304/316 Bayonet Type
Element: Wounded Coil of Bi-Metal
Wetted Parts: SS304/SS 316
Connection: 3/8/1½" BSP/NPT (M)
Mounting: Every Angle
Range: (-)50 to 50 up to 600 Deg C External Zero Adjustment Provided

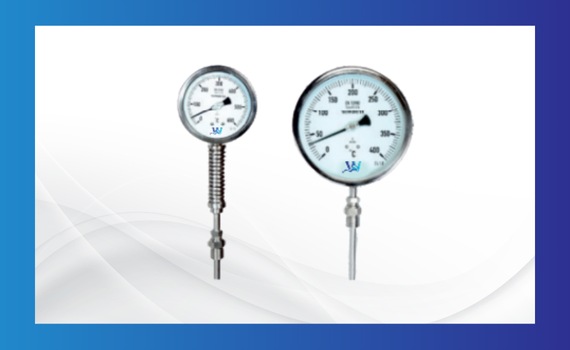

Thermometer Gas Actuated Rigid Stem Type

Dial Size: 100 & 150mm
Accuracy: plus/minus 1 of Full Span As per EN 13190
Case & Bezel: SS 304/316 Bayonet Type Snap Action
Element: Gas Actuated
Wetted Parts: SS304/SS 316
Connection: 3/8/1½" BSP/NPT (M)
Mounting: Bottom/Back/Every Angle
Range: (-)50 to 50 up to 650 Deg C

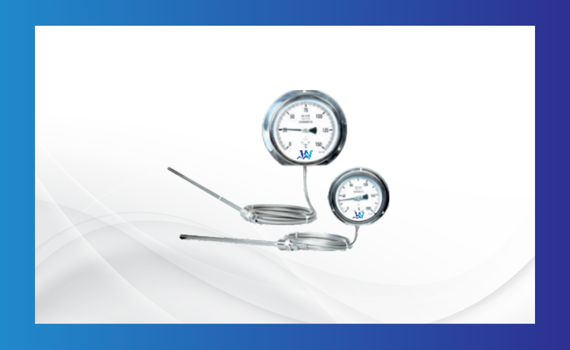

Thermometer Gas Actuated Capillary Type

Dial Size: 100 & 150mm
Accuracy: plus/minus 1 of Full Span As per EN 13190
Case & Bezel: SS 304/316 Bayonet Type Snap Action
Element: Gas Actuated
Wetted Parts: SS304/SS 316
Connection: 3/8 / 1 2 ^ prime prime BSP/NPT (M)
Mounting: Surface / Remote Mounting
Capillary Extn.: 3 Meter Std. upto 10 Meter
Range: (-)50 to 50 up to 650 Deg C

Thermometer Bi Metal

Dial Size: 100 & 150mm
Accuracy: 2 to 1% As per EN 13190
Case & Bezel: SS 304/316 Bayonet Type Snap Action
Element: Gas Actuated
Wetted Parts: SS304/SS 316
Connection: 3/8 / 1 2 ^ prime prime BSP/NPT (M)
Mounting: Bottom/Back/Every Angle
Range: (-)50 to 50 up to 650 Deg C

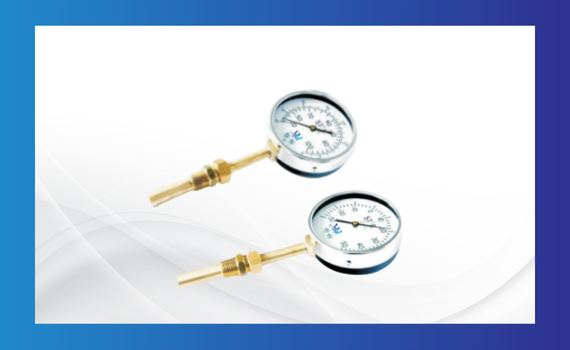

Thermometer Vapour Pressure

Dial Size: 50 & 63mm
Accuracy: (plus/minus 3)% As per EN 13190
Case & Bezel: MS Plated Bayonet Type Snap Action
Element: Gas Actuated
Wetted Parts: SS304/SS 316
Connection:- Mounting: Remote Type
Capillary Extn.: 1.5 to 3 mtr. Std.
Range: 80 to 200 Deg. C

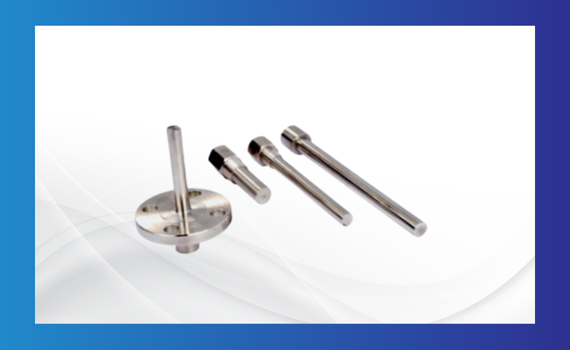

Construction: Bar Stock/Fabricated
Type: Straight/Partial Tapper/Full Tapper
Material: SS 304/SS 316
Inst. Conn.: 3/8"/½" NPT/BSP (F)
Process Connection: Threaded /Flange end

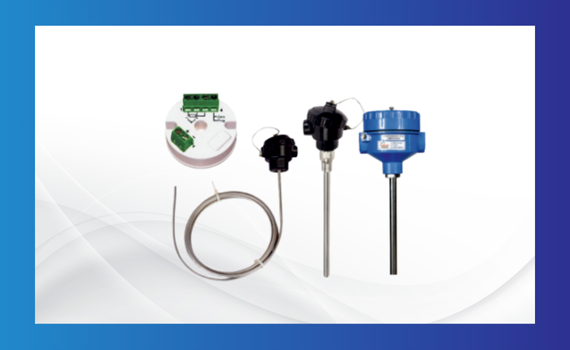

Sensor: PT-100, J, K, R & S Type
Enclosure: Weather Proof/Flame Proof
Accuracy: Class A & Class B
Configuration: Duplex / Simplex
Stem: SS 304/316/310/Inconel
Range: -200 to 1600 Deg. C
